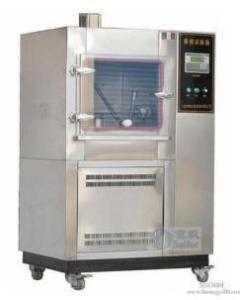

Name: Environmental Test Chamber Comprehensive Rain Test Box Water Tank Inside Circulating Water
Brand: Skyline
Price: 1 USD

Brand Name : Skyline

Model Number : SL-IPX1-4B-R400

Certification : CE, calibration certificate

Place of Origin : China

MOQ : 1 unit

Price : Negoitable

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 10 pcs/ month

Delivery Time : 15 working days

Packaging Details : plywood case

SKYLINE : SL-IPX1-4B-R400 Comprehensive Rain Test Box

Spray ring radius : 400 (mm)

Water pipe diameter : Φ600mm

Nozzle diameter : Φ0.4mm

Aperture spacing 50mm : Aperture spacing 50mm

Standard : IPX1-4

Contact Now

Comprehensive Rain Test Box Water Tank Inside , Circulating Water

IPX1-IPX4 can be completed

Water tank inside,circulating water

Sample energization test

Connected WIFI operation

Model	SL-IPX1-4B-R400
Inner dimension	900×900×900mm
Outer dimension	1350×1150×1750mm
Raindrop area	600×600mm
Size of swing tub	R400mm
IPX12 Flow	IPX1=1mm/min;IPX2=3mm/min
IPX34 Flow	IPX3=1.1L/min;IPX4=1.8L/min
Load bearing of turntable	50kg(Max)
Adjustable range of turntable	450-750mm
Power	1.0Kw
Supply voltage	220V
Safety protection measure	Leakage protection,water shortage protection,short circuit protection

Environmental Test Chamber Comprehensive Rain Test Box Water Tank Inside , Circulating Water
